Export SBOMs and VEX

Exporting an SBOM gives you a standardized, portable inventory of a project’s or package version’s components that you can share with customers, auditors, or other tools, independent of Endor Labs. A VEX export adds vulnerability exploitability status for those components, so recipients know which findings actually apply. To export an SBOM you must first perform a successful endorctl scan. If you haven’t successfully scanned a project see quick start for more information. Endor Labs supports export in the CycloneDX format, VEX format, and SPDX format.

Export SBOM or VEX through the Endor Labs user interface

You can export an SBOM or VEX document for a project, a package version, or from a finding.

Export SBOM or VEX for a project

When you export an SBOM or VEX at the project level, Endor Labs includes all packages and package versions by default, combining them into a single consolidated file. A consolidated SBOM or VEX enables quick identification and assessment of vulnerabilities across all software components in the project. Endor Labs generates SBOM and VEX exports as background jobs. Start an export from a project, then track its progress and download the file from the Reports page once the job succeeds.

SBOM export
VEX export

Select Projects from the left sidebar and select the project for which you want to export the SBOM.
Click Export, then select SBOM.

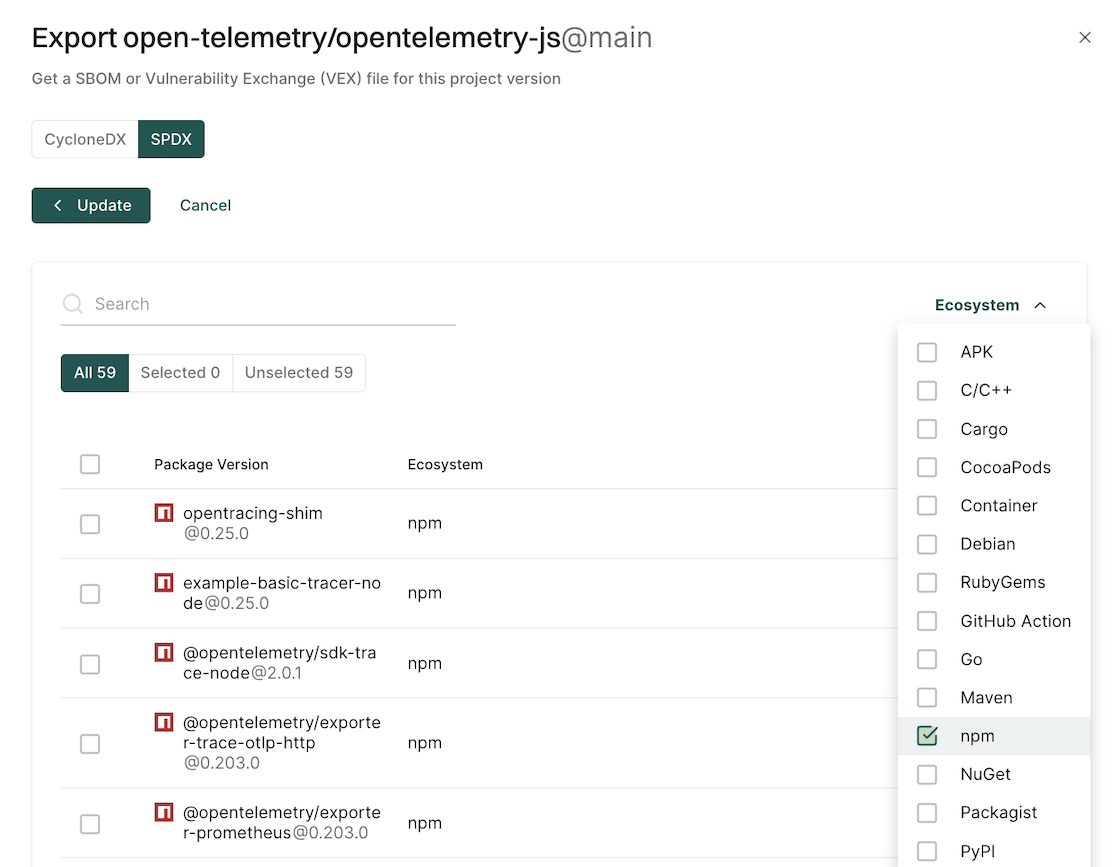

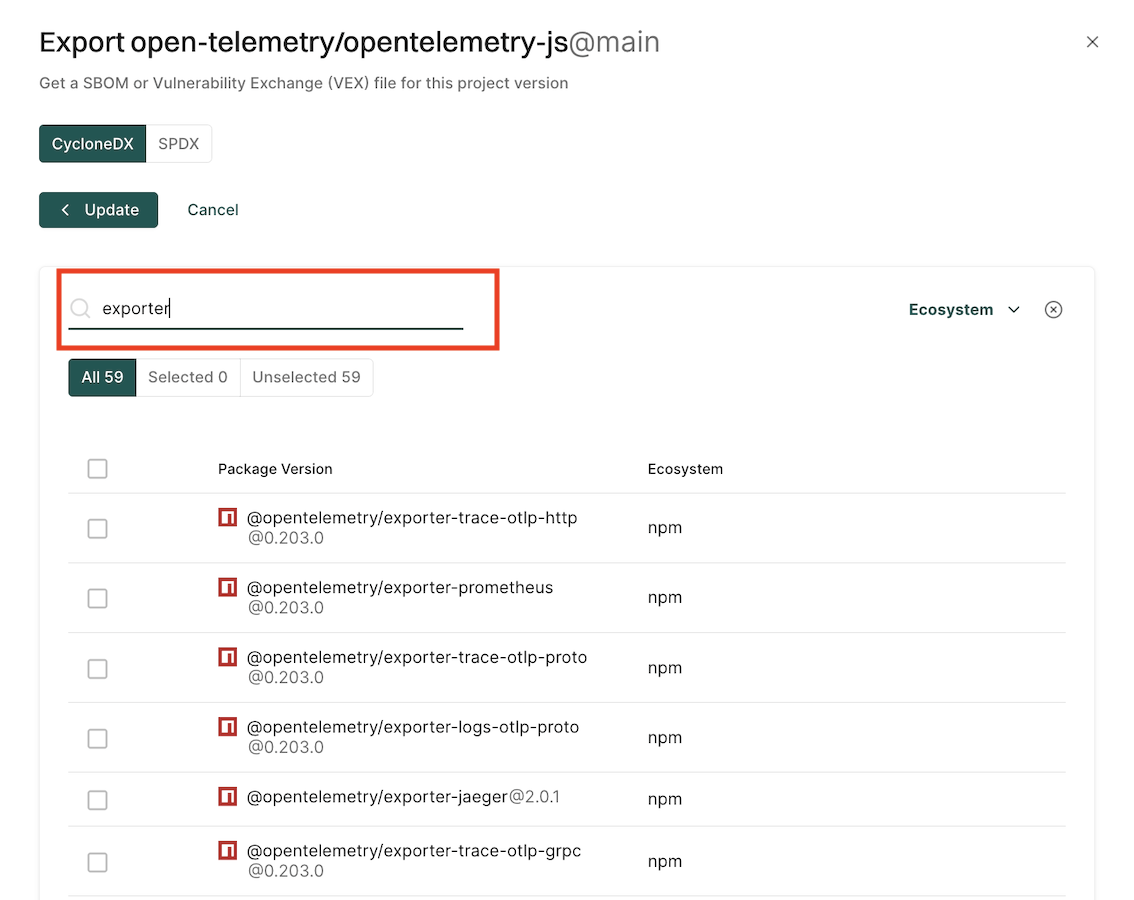

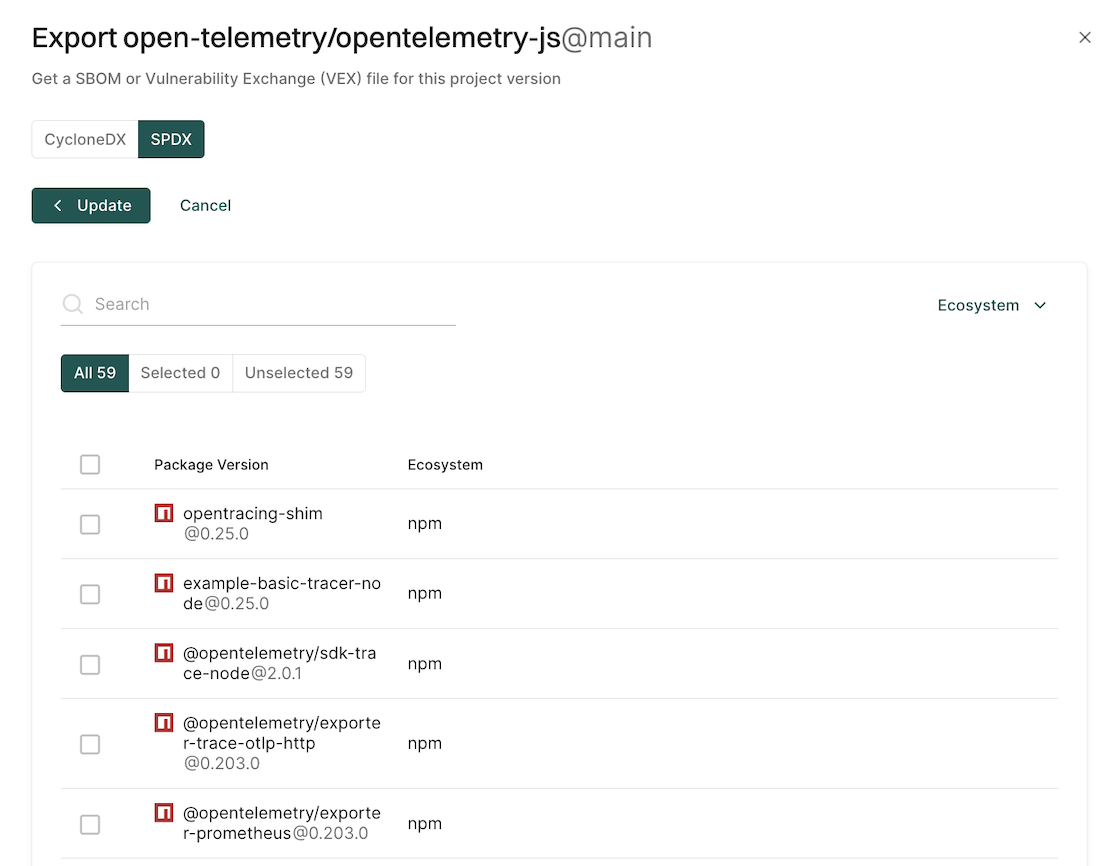

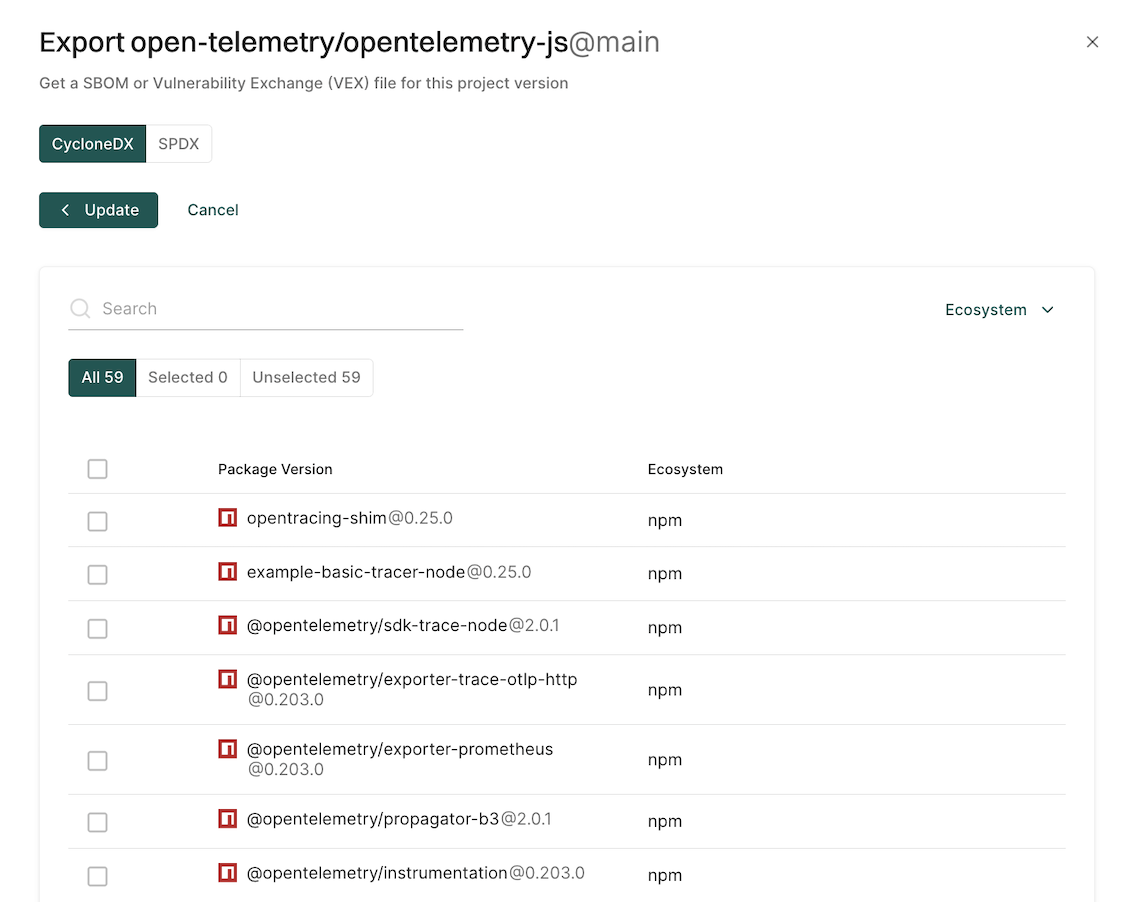

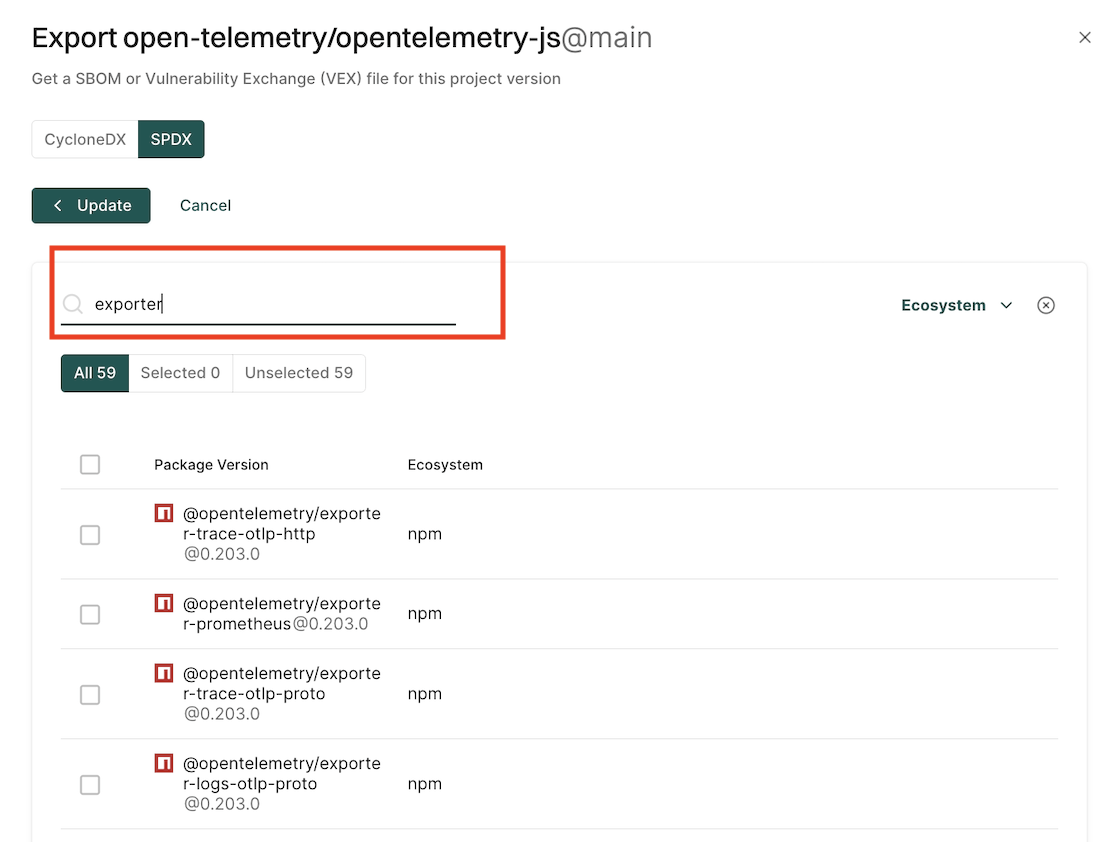

Under Packages, select the packages and package versions to include in the SBOM and click Confirm. If you don’t select any packages, Endor Labs includes all packages and package versions. You can filter by ecosystem to narrow the list of packages, and search to select multiple versions of the same package.

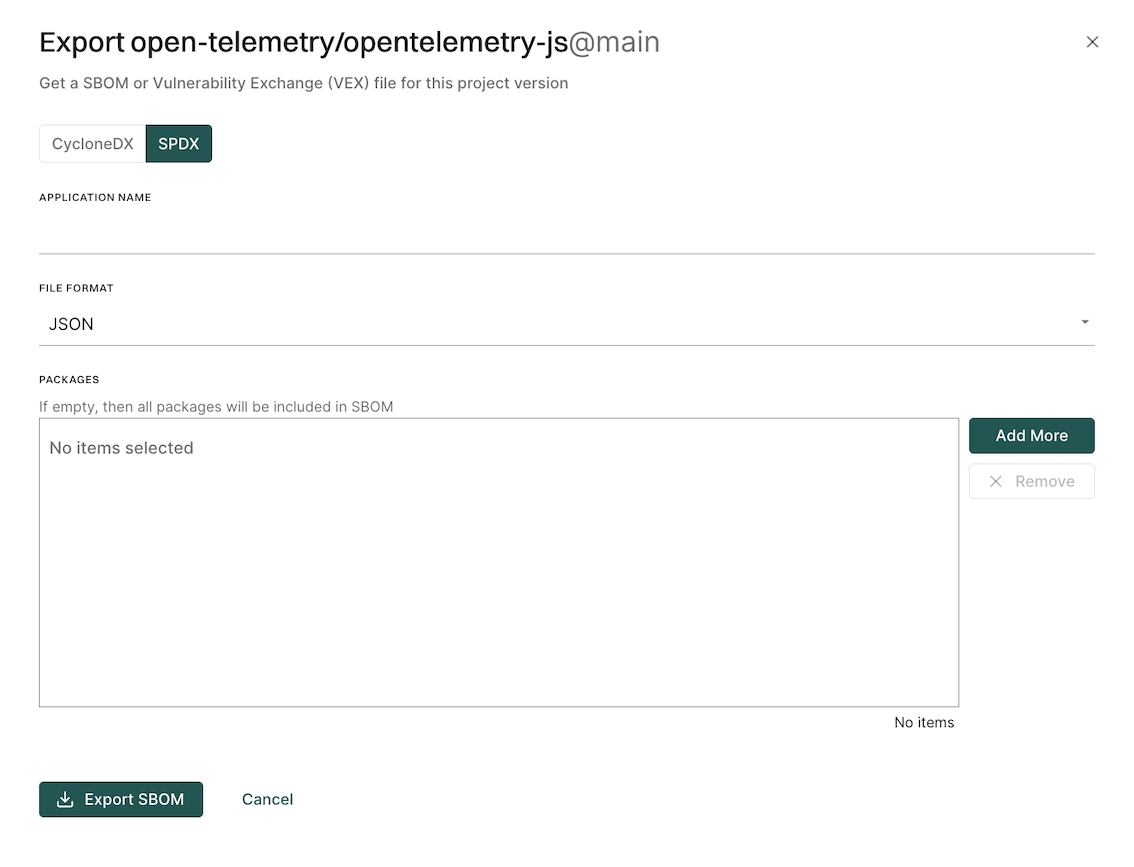

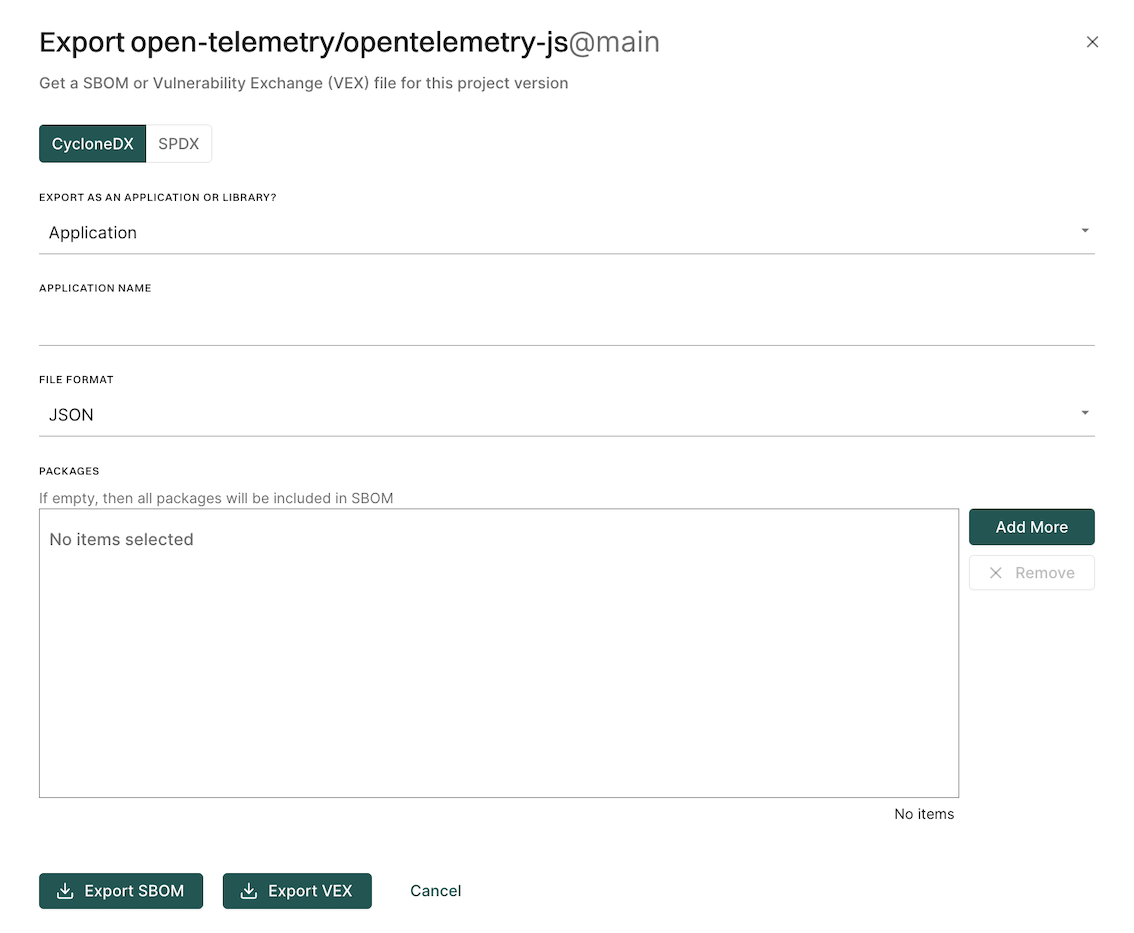

Select CycloneDX or SPDX in Format.
Select Application or Library in Artifact type. If you select Application, enter a name in Application Name.
Select the output format in File format.
- CycloneDX supports JSON or XML.
- SPDX supports JSON or Tag-Value.
Optionally, select Include test dependencies to include test and other non-production dependencies in the SBOM. By default, Endor Labs excludes test dependencies.
Click Export.

Endor Labs submits the SBOM export as a background job and shows a confirmation message. Select View Reports in the confirmation message to track the job status and download the SBOM once it completes.You can also track the job status and download the SBOM once it completes by following these steps:

Select Reports from the left sidebar.
Find the SBOM export job in the list and click View.
Click the three vertical dots and select Download to download the SBOM.

See Reports for more information about report statuses and downloading reports.

Export SBOM or VEX from findings

When you export an SBOM or VEX for findings, Endor Labs scopes the export to the project you select and includes all its packages and package versions by default, combining them into a single consolidated file. This lets you generate a consolidated SBOM or VEX for a project directly from its findings.

Select Findings from the left sidebar.
In the Project column, click the name of the project you want to export, then select Export SBOM or Export VEX.

Export SBOM or VEX for a package version

When you export an SBOM or VEX for a package version, Endor Labs scopes the export to the package version you select and includes all its dependencies by default, combining them into a single consolidated file. This lets you generate a consolidated SBOM or VEX for a package version directly from its dependencies.

Select Discover from the left sidebar.
Search and select an open source package.
Select a package version to view its details.
Click Export, then select SBOM or VEX. See Export an SBOM or VEX for a package version for more information about selecting packages, choosing a format, and completing the export.

Export an SBOM or VEX through the REST API

Endor Labs generates SBOM and VEX exports through the AsyncJob resource. This lets you export SBOMs and VEX documents for large projects without the request timing out.

Submit an export job

Submit an export job with POST /v1/namespaces/{namespace}/async-jobs. Set spec.type to TYPE_SBOM or TYPE_VEX, and provide the export parameters in spec.request.sbom or spec.request.vex.Endor Labs returns an AsyncJob with a UUID and spec.state set to JOB_STATE_NEW.

Poll the job status

Poll the job with GET /v1/namespaces/{namespace}/async-jobs/{uuid} until spec.state is JOB_STATE_SUCCESS, JOB_STATE_FAILED, or JOB_STATE_CANCELLED.

Download the file

On success, download the file from the signed URL in spec.response.sbom.report_url or spec.response.vex.report_url.

The signed download URL expires after 5 minutes. If it expires before you download the file, call GetAsyncJob again to get a fresh URL.

Export SBOM through endorctl

You can use the following options with the SBOM export command. You can export an SBOM in CycloneDX or SPDX format using endorctl, for a single package version or across multiple package versions. To export the CycloneDX SBOM as a library rather than an application use --component-type=library.

endorctl sbom export --component-type=library --package-version-name=$PACKAGE_VERSION_NAME >> cyclonedx.json

To export the CycloneDX SBOM in XML format rather than json use --output-format with the XML parameter.

endorctl sbom export --output-format=xml --package-version-name=$PACKAGE_VERSION_NAME >> cyclonedx.xml

To export a VEX document use the flag --with-vex

endorctl sbom export --with-vex

To export the SPDX SBOM using the tag-value format instead of json, use --output-format=tag-value.

endorctl sbom export --format spdx --output-format=tag-value --package-version-name=$PACKAGE_VERSION_NAME >> sbom-spdx.spdx

endorctl generates SBOMs in the CycloneDX format by default.

Endor Labs Export Formats

Endor Labs provides the following fields to map to the NTIA minimum elements of an SBOM standard.

CycloneDX Format

Endor Labs supports export in the CycloneDX format. The following table lists the mandatory and some optional fields in the SBOM file that Endor Labs exports.

Patch data in SBOM

CycloneDX SBOMs generated by Endor Labs include patch data for components that use an Endor patch. This allows consumers of the SBOM to see exactly which upstream version was patched, what changes were applied, and which vulnerabilities those patches resolve. The following fields describe how patch data appears in the exported SBOM. The following example shows a patched component in a CycloneDX SBOM.

{
  "bom-ref": "mvn://com.fasterxml.jackson.core:jackson-databind@2.9.10.3-endor-2024-07-10",
  "type": "library",
  "name": "com.fasterxml.jackson.core:jackson-databind",
  "version": "2.9.10.3-endor-2024-07-10",
  "licenses": [],
  "purl": "pkg:maven/com.fasterxml.jackson.core/jackson-databind@2.9.10.3-endor-2024-07-10",
  "pedigree": {
    "ancestors": [
      {
        "bom-ref": "mvn://com.fasterxml.jackson.core:jackson-databind@2.9.10.3",
        "type": "library",
        "name": "com.fasterxml.jackson.core:jackson-databind",
        "version": "2.9.10.3",
        "licenses": [],
        "purl": "pkg:maven/com.fasterxml.jackson.core/jackson-databind@2.9.10.3",
        "externalReferences": [
          {
            "url": "https://github.com/fasterxml/jackson-databind.git",
            "type": "vcs"
          }
        ]
      }
    ],
    "patches": [
      {
        "diff": {
          "text": {
            "content": "<base64-encoded patch content>",
            "contentType": "text/plain",
            "encoding": "base64"
          }
        },
        "resolves": [
          {
            "id": "",
            "name": "GHSA-q93h-jc49-78gg",
            "description": "",
            "type": "security"
          },
          {
            "id": "",
            "name": "GHSA-p43x-xfjf-5jhr",
            "description": "",
            "type": "security"
          }
        ]
      }
    ]
  }
}

VEX Format

The following table lists the mandatory and some optional fields in the VEX file that Endor Labs exports.

SPDX Format

The following table lists the mandatory and some optional fields in the SPDX file that Endor Labs exports.
